A Comprehensive Guide to 24 Inch Sand Filters for Inground Pools
Sizing and Features of a 24 Sand Filter for Inground Pool Systems
A 24 sand filter for inground pool installations features a tank diameter of exactly two feet, providing an effective filtration surface area of approximately 3.14 square feet. The tank housing is typically crafted from heavy-duty, corrosion-proof polymeric resin or high-density polyethylene (HDPE), designed to withstand all-weather elements and working pressures up to 50 PSI (though typical operating pressure stays under 28–30 PSI).
Internally, these units hold a media bed of 300 lbs of filter sand. At the bottom of the tank sits an lateral underdrain assembly—often utilizing an umbrella-fold design with 360-degree self-cleaning slotted laterals. This ensures balanced water flow during both regular filtration cycles and backwashing. Most 24-inch filters process a design flow rate ranging between 62 and 65 gallons per minute (GPM).
Performance Specs for a 24 Sand Filter for Inground Pool Setups
Understanding performance metrics helps determine if a 24 sand filter for inground pool systems fits your setup:
- Surface Area: 3.14 sq. ft.
- Maximum Flow Rate: 62 GPM to 65 GPM
- 8-Hour Turnover: Up to 29,760 gallons
- 10-Hour Turnover: Up to 37,200 gallons
- Maximum Recommended Pool Size: 30,000 to 33,000 gallons
A crucial sizing guideline in the pool industry is keeping the flow rate at or below 20 GPM per square foot of filter surface area. For a 3.14 sq. ft. sand bed, maximum flow maxes out right around 62.8 GPM. If your pool pump delivers significantly higher flow, a larger vessel—such as a 30-inch model—is necessary to prevent channel tunneling through the sand bed.
Models like the ProSeries 24″ Sand Filter – Top Mount (2″ VariFlo Valve Included) (Open Line) are fully compatible with single-speed, two-speed, and variable-speed pumps, provided flow limits are respected. If you are exploring different sizing options, check out this A-Z Guide to 24 Inch Sand Filters.

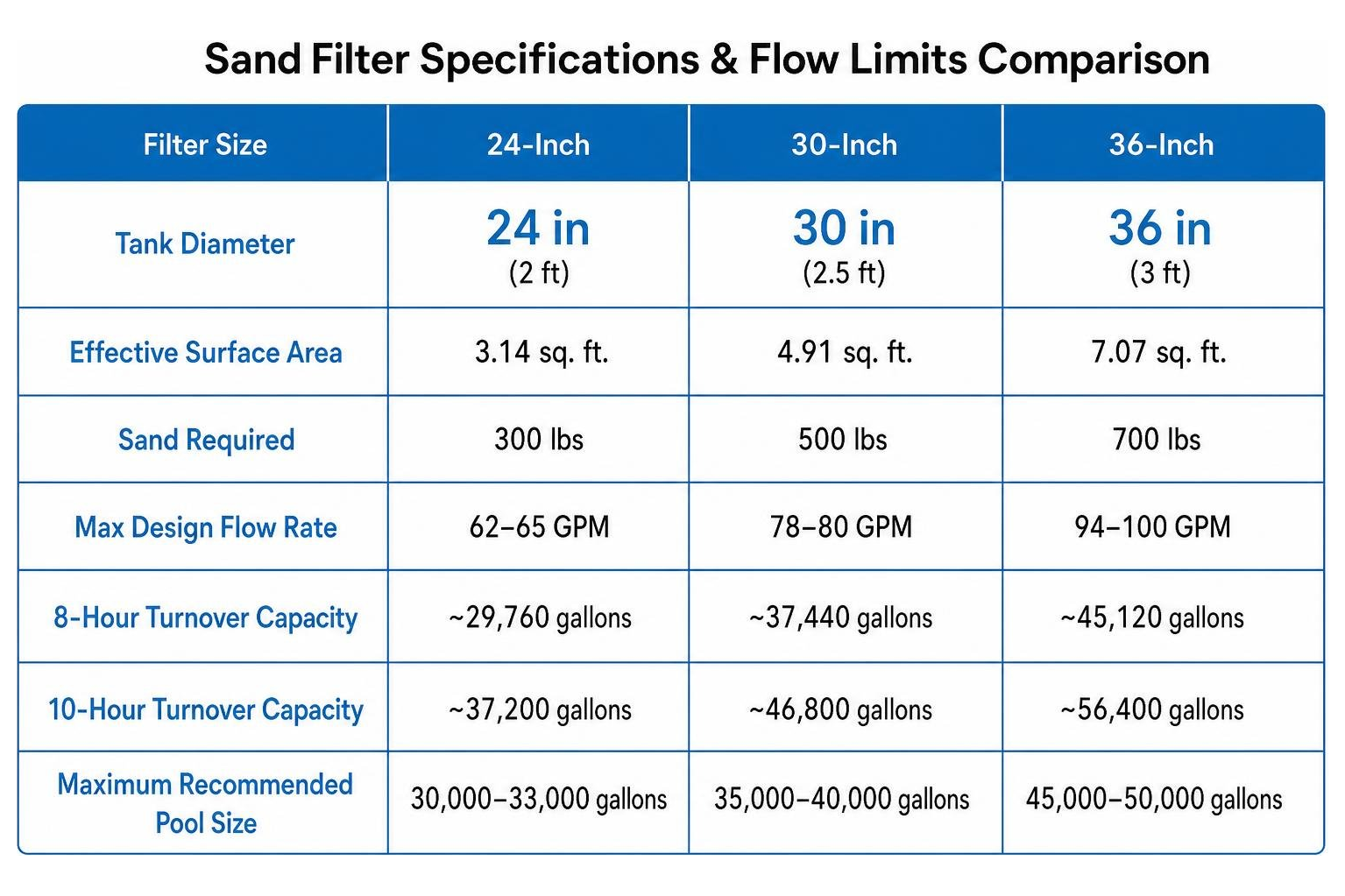

| Filter Size | Effective Surface Area | Sand Required | Max Design Flow Rate | 8-Hour Turnover Capacity |
|---|---|---|---|---|
| 24-Inch | 3.14 sq. ft. | 300 lbs | 62–65 GPM | ~29,760 gallons |
| 30-Inch | 4.91 sq. ft. | 500 lbs | 78–80 GPM | ~37,440 gallons |
| 36-Inch | 7.07 sq. ft. | 700 lbs | 94–100 GPM | ~45,120 gallons |
Filter Media and Maintenance Requirements for a 24 Sand Filter for Inground Pool Installations
To operate properly, a 24 sand filter for inground pool applications requires #20 grade silica sand (0.45 to 0.55 mm particle size). Silica sand captures debris down to 20 microns.
Alternative media options exist, though traditional sand remains the gold standard:
- Zeolite Media: Made from natural minerals, zeolite claims finer filtration down to 5–10 microns. However, zeolite quality can vary depending on where it is mined. Soft particles can crumble into fine dust that clouds pool water, and the media tends to clump or channel more easily than standard pool sand.
- Luster/Alternative Media: Light polymer fiber media reduces physical weight (150 lbs of alternative media replaces 300 lbs of sand), but it requires manual washing rather than standard backwashing.
Proper care keeps your filtration system running smoothly. You can learn detailed tips on How to Maintain Your Pools Filtration System.
Expect to backwash your filter every 2 to 4 weeks, or whenever your pressure gauge reads 8 to 10 PSI above its initial clean starting pressure. Over time, water friction rounds off the sharp edges of sand grains, diminishing their trapping efficiency. Standard filter sand lasts 5 to 10 years before requiring complete replacement.
Comparing 24-Inch Sand Filters to Other Filtration Options and Upgrades
When selecting a 24 sand filter for inground pool installations, choosing the right valve style and comparing system types will ensure hassle-free operation.

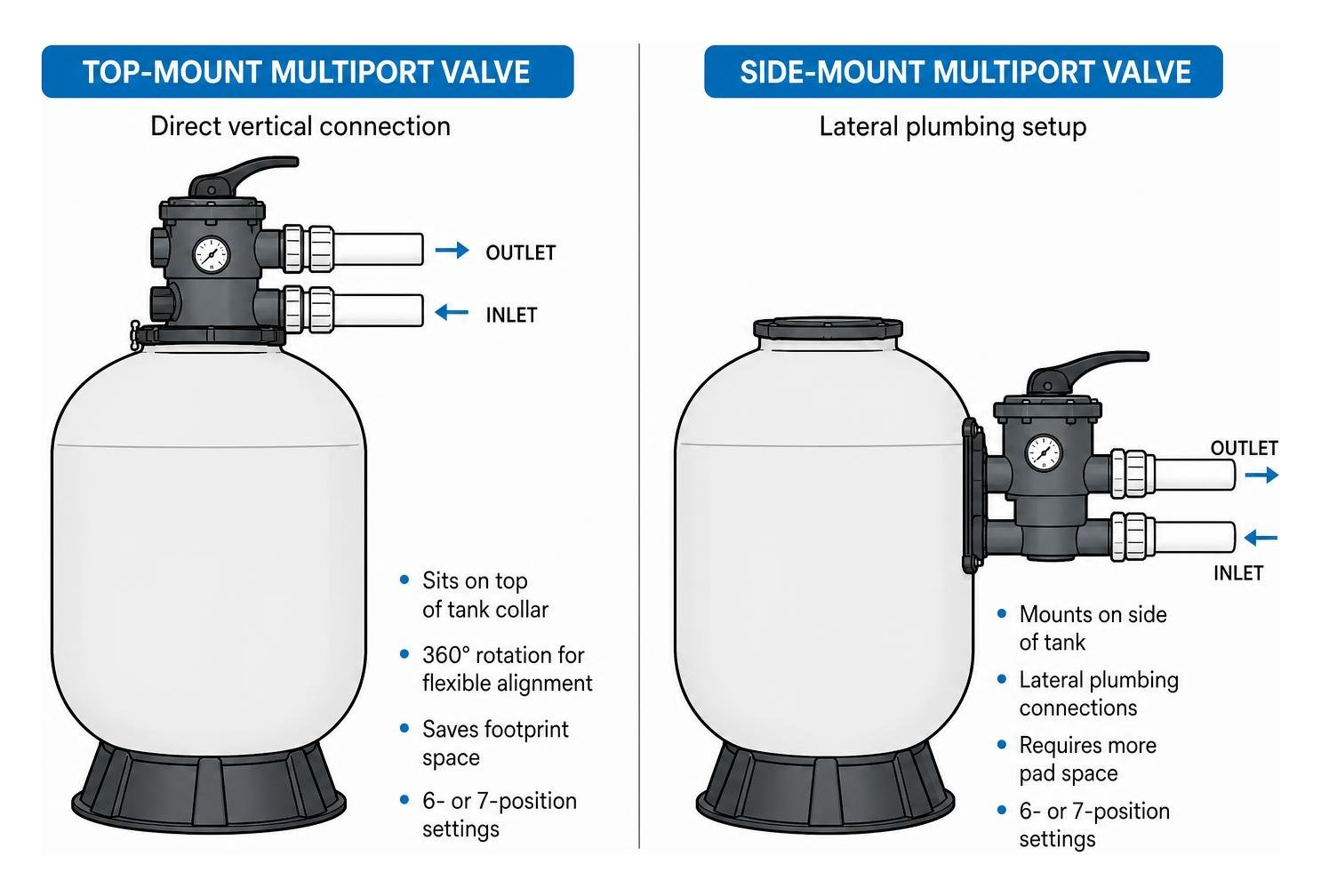

Top-Mount vs Side-Mount Multiport Valve Configurations
Sand filters feature two primary multiport valve configurations: top-mount and side-mount.
Top-Mount Multiport Valves:
- Sit directly on top of the filter tank collar.
- Feature 360-degree flange clamp rotation, allowing flexible plumbing alignments during installation.
- Save physical footprint space on small equipment pads.
- Feature 6- or 7-position settings (Filter, Backwash, Rinse, Recirculate, Waste, Winter, Closed).
Side-Mount Multiport Valves:
- Mount to the side of the tank via two bulkhead fittings.
- Offer easier access to internal laterals and top-up sand changes without dismantling main plumbing connections.
- Often provide slightly better water flow dynamics due to direct internal piping layouts.
Units such as the ProSeries 24″ Sand Filter – Side Mount (1 1⁄2″ VariFlo Valve Included) offer excellent long-term durability. Both options feature integrated sight glasses for observing backwash water clarity and large 1.5-inch pressure drains for end-of-season pool winterization. Read our comprehensive Swimming Pool Filtration Systems a Guide to explore more layout comparisons.
Sand vs Cartridge and DE Pool Filters
Choosing between sand, cartridge, and diatomaceous earth (DE) depends on your priorities regarding water clarity, upkeep effort, and initial budget. Review our guide on the Best Pool Filtration options to learn more.
- Filtration Quality: Sand filters trap debris down to 20 microns, cartridge filters capture down to 10 microns, and DE filters clean down to 5 microns.
- Maintenance: Sand filters only require a 3-minute backwash cycle every few weeks. Cartridge elements require manual hose washing, while DE filters need fresh DE powder added after every backwash.
- Operating Costs: Sand filters feature low initial costs and low long-term maintenance fees. Calculate overall investment breakdowns in our guide on the Cost of New Pool Filter.
Installation and Pump Pairing Best Practices
Proper pump pairing is vital when setting up a 24 sand filter for inground pool systems:
- Pump Horsepower: Pair a 24-inch sand filter with a 1 HP to 1.5 HP single-speed pump, or a variable-speed pump calibrated to run normal filtration cycles around 30 to 45 GPM.
- Clearance Requirements: Leave a minimum of 18 inches of vertical and side clearance around the tank to allow easy access for multi-port handle operation, pressure gauge reading, and winterizing drain port removal.
- Pipe Adjustments: Inspect bulkhead fittings carefully. While standard residential systems utilize 1.5-inch or 2-inch PVC lines, verify connection dimensions prior to gluing.
- Converting from DE to Sand: Flush plumbing lines completely to clear remnant DE powder before hooking up your sand vessel. Follow our detailed How to Replace a Pool Filter Step by Step Guide during installation.
Professional Inground Pool Equipment Guidance
Selecting the right equipment keeps your backyard oasis crystal-clear all season long. Aqua Leisure Pools and Spas serves pool owners across Northeastern Pennsylvania, providing expert assistance, equipment installation, and seasonal maintenance.
If you are located near Doylestown, Dickson City, Scranton, Wilkes-Barre, or Bartonsville, stop by a local showroom to speak with experienced pool specialists.
