The Definitive Guide to Comparing Solar Pool Heater Systems
Types, Costs, and Sizing for Solar Pool Heater Systems
When selecting solar pool heater systems, understanding how different solar thermal collectors interact with your space is essential. Most residential solar collectors are unglazed, meaning they do not feature an outer glass cover. Standard unglazed collectors are constructed from UV-stabilized polypropylene or high-density polyethylene (HDPE) plastic. These materials absorb thermal energy efficiently and resist degradation from intense sunlight and pool chemicals.
For properties where roof space is restricted, modern engineering offers compact options like nano-graphitic composite panels. These advanced multilayered panels incorporate nano-graphitic materials in their inner structure, which transfer heat up to 30% faster than standard plastic collectors. As a result, nano-composite arrays can produce up to 40% more heating output per square foot, making them an ideal space-saving choice for smaller roofs or complex rooflines.
Sizing and Return on Investment
Unlike indoor space heating, solar pool heaters are sized based on the pool’s surface area rather than its total water volume. This is because surface evaporation accounts for roughly 70% of total pool heat loss. According to energy guidance from the U.S. Department of Energy, solar pool heating is one of the most cost-effective uses of solar energy in moderate climates. To size a solar array correctly, calculate the surface area of your pool (length × width for rectangular shapes) and select a collector array equal to 50% to 100% of that surface area. In Northeastern Pennsylvania, opting for 70% to 100% coverage ensures maximum performance during the shoulder months of spring and autumn.
While a solar heating array requires an upfront investment for hardware and setup, operational costs remain practically zero because the system uses the sun’s free energy and relies on your existing filtration pump. Compared to fossil-fuel or electric resistance heaters, solar collectors can pay for themselves through utility bill savings in just a few seasons.
Comparing Panel Collectors and Covers in Solar Pool Heater Systems
Solar panels and solar blankets serve distinct functions in maintaining warm pool water. Solar panel arrays actively capture heat during daylight hours, while heavy-duty solar blankets—typically made of 12 mil thick polyethylene—act as thermal insulation to prevent overnight heat loss and water evaporation.
| Feature | Solar Panel Collector Systems | Solar Covers / Blankets (12 Mil) |
|---|---|---|
| Primary Function | Active thermal heat generation | Passive heat retention and evaporation barrier |
| Temperature Impact | Raises water temperature by 6°F to 10°F+ | Prevents 5°F to 10°F overnight temperature drops |
| Installation Area | Roof or ground rack | Fits directly over the water surface |
| Lifespan | 15 to 20 years | 3 to 6 years |
| Maintenance | Annual winterization, checking pipe joints | Daily removal, manual rolling, cleaning chemical film |
To get the most out of an active solar heating setup, panel orientation and tilt are key considerations. Panels should ideally face South or Southwest to capture maximum radiation between 8:00 AM and 4:00 PM. Mounting panels at a tilt angle equal to your local latitude minus 10 to 15 degrees optimizes performance for summer swimming. Pairing active panels with a quality solar cover creates the ultimate thermal loop: panels generate heat during the day, and the cover traps that energy overnight.
To learn more about maximizing blanket durability and sizing above-ground configurations, consult The Complete Guide to Inground Pool Solar Covers and our Step-by-Step Guide to Solar Heaters for Above Ground Pools.
Key Components and Installation of Solar Pool Heater Systems

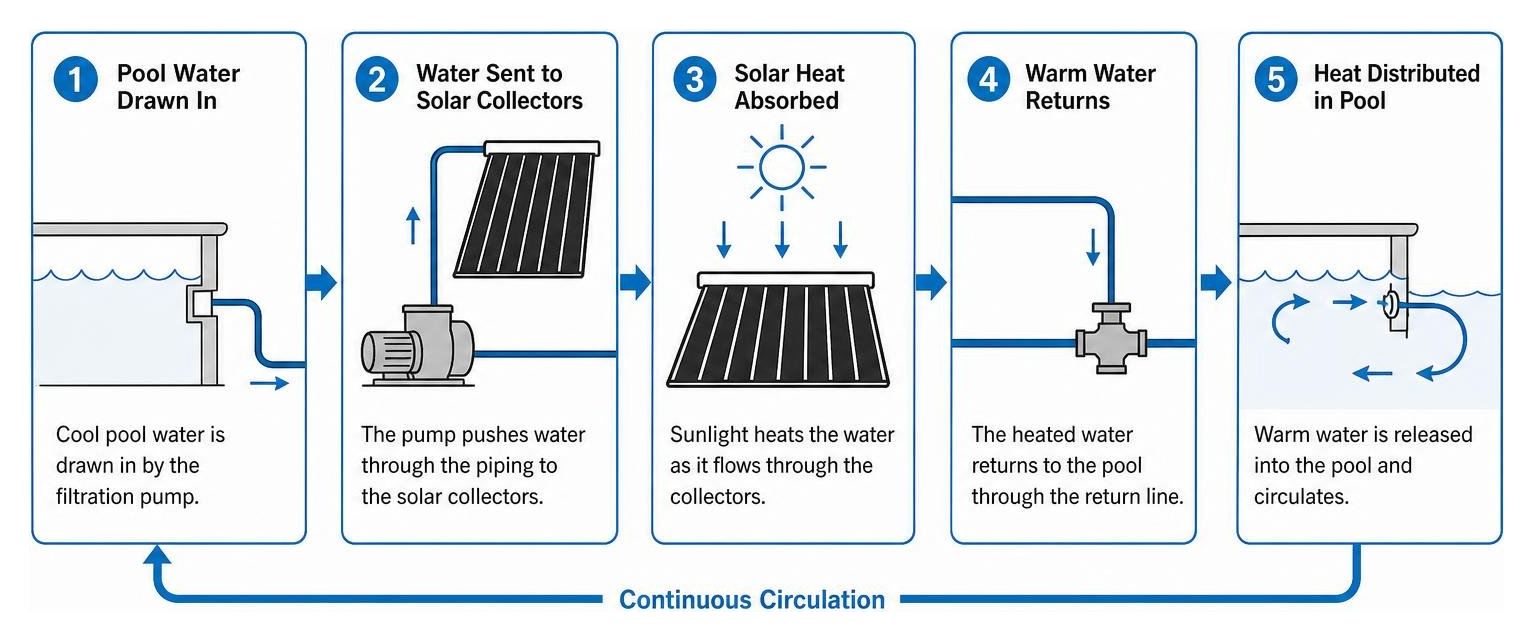

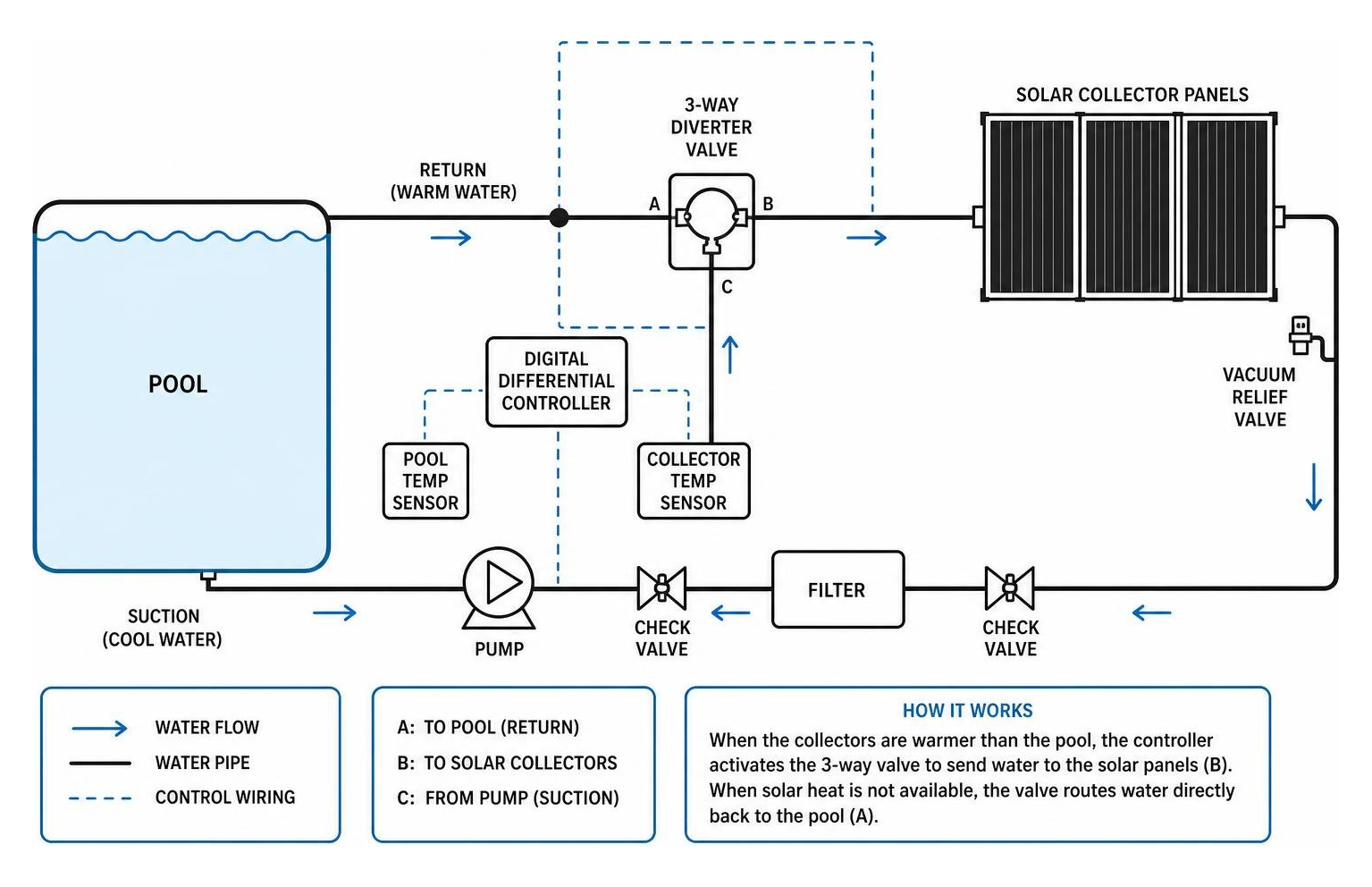

A complete solar thermal setup consists of several interconnected components working in sync with your filtration loop:
- Collector Panels: Absorber arrays mounted on a roof or ground stand.
- Motorized 3-Way Diverter Valve: Dynamically routes water toward the roof collectors when thermal conditions are optimal.
- Digital Differential Controller: Uses sensors to monitor both pool temperature and solar collector temperature, actuating the 3-way valve only when solar thermal energy is actively available.
- Vacuum Relief Valve: Located at the highest point of the system to let air in when the pump shuts down, allowing water to drain back down automatically.
- Check Valves: Prevent water from flowing backward through the filtration pump and filter.
When choosing hardware, homeowners can select between complete DIY kits and custom installation options. DIY solar kits feature modular panels, heavy-duty rubber hose connectors or twist-lock union joints, and high-wind mounting hardware designed for straightforward assembly. For storm-prone areas, industrial-grade mounting hardware using strapless flush-mount pads helps secure collectors without damaging roof shingles.
To evaluate whether a standalone solar arrangement or a hybrid setup suits your backyard setup best, read What Type of Pool Heater Is Best For You.
System Lifespan, Seasonal Performance, and Winterization
High-quality solar collectors are built for long-term outdoor durability, with typical lifespans ranging from 15 to 20 years. Many premium systems include 10-year to lifetime limited warranties that cover manufacturing defects and thermal expansion stress cracking.
During peak sunny months, solar pool heater systems provide a reliable 6°F to 10°F temperature boost over unheated pools, easily extending comfortable swimming from late spring into early autumn. However, in regions subject to freezing winter climates, proper end-of-season care is essential to protect panel headers from internal ice expansion.

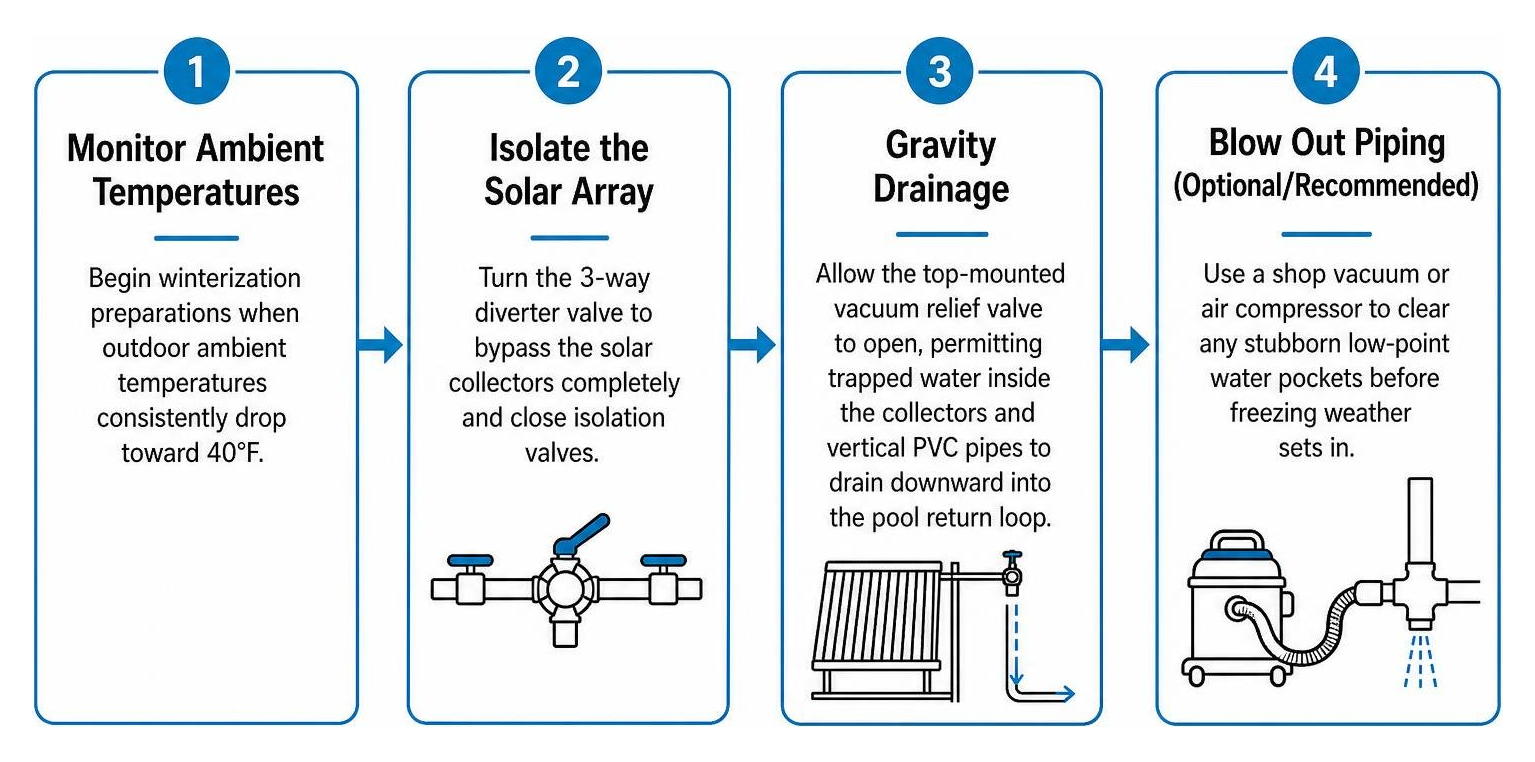

- Monitor Ambient Temperatures: Begin winterization preparations when outdoor ambient temperatures consistently drop toward 40°F.
- Isolate the Solar Array: Turn the 3-way diverter valve to bypass the solar collectors completely and close isolation valves.
- Gravity Drainage: Allow the top-mounted vacuum relief valve to open, permitting trapped water inside the collectors and vertical PVC pipes to drain downward into the pool return loop.
- Blow Out Piping (Optional/Recommended): Use a shop vacuum or air compressor to clear any stubborn low-point water pockets before freezing weather sets in.
Implementing routine maintenance like clearing autumn debris from panel surfaces and verifying rubber hose connections ensures long-term performance. Explore further energy-saving tips in our guide on How Can Your Pool Be More Energy Efficient.
Choosing the Ideal Heating Solution for Your Pool
Investing in solar pool heating allows pool owners to enjoy a warm, inviting pool while minimizing ongoing utility costs and environmental impact. By capturing clean thermal energy directly from the sun, solar pool collectors eliminate fossil fuel consumption and carbon emissions associated with conventional heating methods.
Whether you are looking to retrofit an existing pool with advanced nano-composite roof panels or want a full setup complete with automated digital controls, selecting equipment backed by expert design makes all the difference.
