Transform Your Night Swims Using Vibrant 8-Inch Pool Lighting
Find the Right 8 Inch Pool Light for a Brighter Backyard
An 8 inch pool light is an underwater fixture made for a compatible 8-inch wet niche or shallow recessed installation. For most inground-pool upgrades, the right choice comes down to four checks:
- Measure the existing niche opening and depth before ordering.
- Match the fixture voltage to the pool’s current electrical system: 12V or 120V.
- Choose an IP68-rated LED model designed for full submersion.
- Pick white light for simple visibility or RGB/RGBW color changing for more atmosphere.
LED fixtures are the popular upgrade because they use far less power than older incandescent or halogen lights, while offering long service life, brighter output, and color options. Many modern models can run through a wall switch, remote, app, or compatible pool automation system.
The key detail is fit. An “8-inch” light can refer to niche depth, fixture face size, or a product family’s fitment description, so always confirm the manufacturer’s exact dimensions and niche compatibility rather than relying on the name alone.
8 inch pool light terms at a glance:
Choosing the Best 8 Inch Pool Light for Your Inground Setup
Upgrading or replacing an underwater fixture requires close attention to physical housing dimensions and pool chemistry dynamics. Before picking a model, understanding everything you need to know about swimming pool lights makes the selection process straightforward.

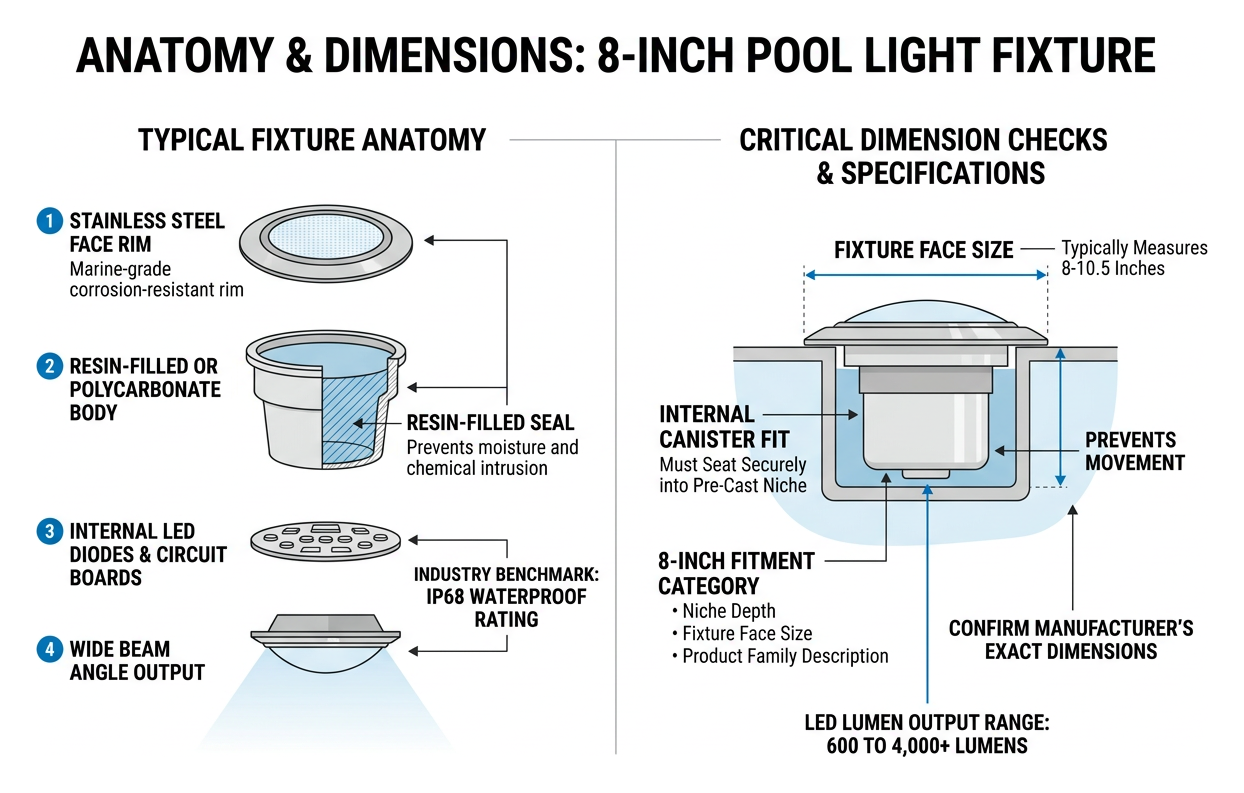

When evaluating an 8 inch pool light, precision sizing is critical. The outer face rim of a standard mid-size to large underwater fixture typically measures between 8 and 10.5 inches across, while the internal canister seats securely into a pre-cast wall niche. An exact fit prevents movement against the plaster or vinyl liner.
The industry benchmark for underwater durability is the IP68 waterproof rating. This certification guarantees that the light fixture remains completely hermetic under continuous water pressure up to specific submersion depths. Selecting high-output LEDs producing anywhere from 600 to 4,000+ lumens ensures clean illumination from the shallow steps down to the deepest basin without dark shadows.
Key Features of a Modern 8 Inch Pool Light Fixture
Modern underwater luminaires have evolved beyond hot, fragile bulbs housed in bulky cans. Premium fixtures now utilize corrosion-resistant marine-grade stainless steel face rims paired with resin-filled or polycarbonate sealed bodies. A resin-filled interior permanently seals internal diodes, circuit boards, and connections against moisture intrusion and pool chemicals.
Many contemporary 8-inch and mid-sized fixtures act as direct replacements for older PAR56 halogen housings or legacy wet niches. Wide beam angles ensure uniform light dispersal across large swimming surfaces, eliminating glare and tunnel-vision effects in the water.
| Performance Metric | Traditional Incandescent / Halogen | Modern 8-Inch LED Fixture |
|---|---|---|
| Power Consumption | 300W – 500W | 10W – 60W |
| Average Lifespan | 1,000 – 2,000 hours | 30,000 – 50,000 hours |
| Energy Reduction | Baseline standard | Up to 85% – 90% savings |
| Heat Emission | High (hot lens) | Low (thermally managed) |
| Color Versatility | Fixed white (or snap-on lenses) | Dynamic RGBW, solids & light shows |
| Internal Sealing | Gasket-dependent air chamber | Fully resin-filled / IP68 sealed |
12V vs 120V Voltage Selection and Energy Efficiency
Choosing between line voltage (120V) and low voltage (12V) is an essential electrical decision. Many existing pool constructions feature 120V line power running directly to the pool junction box. However, modern safety standards strongly favor low-voltage systems powered by an isolated step-down transformer.
Using an isolating 12V AC/DC transformer dramatically reduces the risk of high-voltage shock in the unlikely event of conduit or seal degradation. Before upgrading, reviewing the checklist for selecting a compatible 12v pool light will help prevent wiring mismatches. Connecting a 12V LED directly to a 120V feed will immediately damage the internal driver, while under-powering a 120V light on a 12V transformer will cause it not to illuminate at all.
Switching from a 500-watt halogen bulb to a 35-watt or 50-watt LED slashes electricity consumption by roughly 85% to 90%, allowing homeowners to discover creative, energy-efficient inground pool lighting ideas without driving up monthly utility bills.

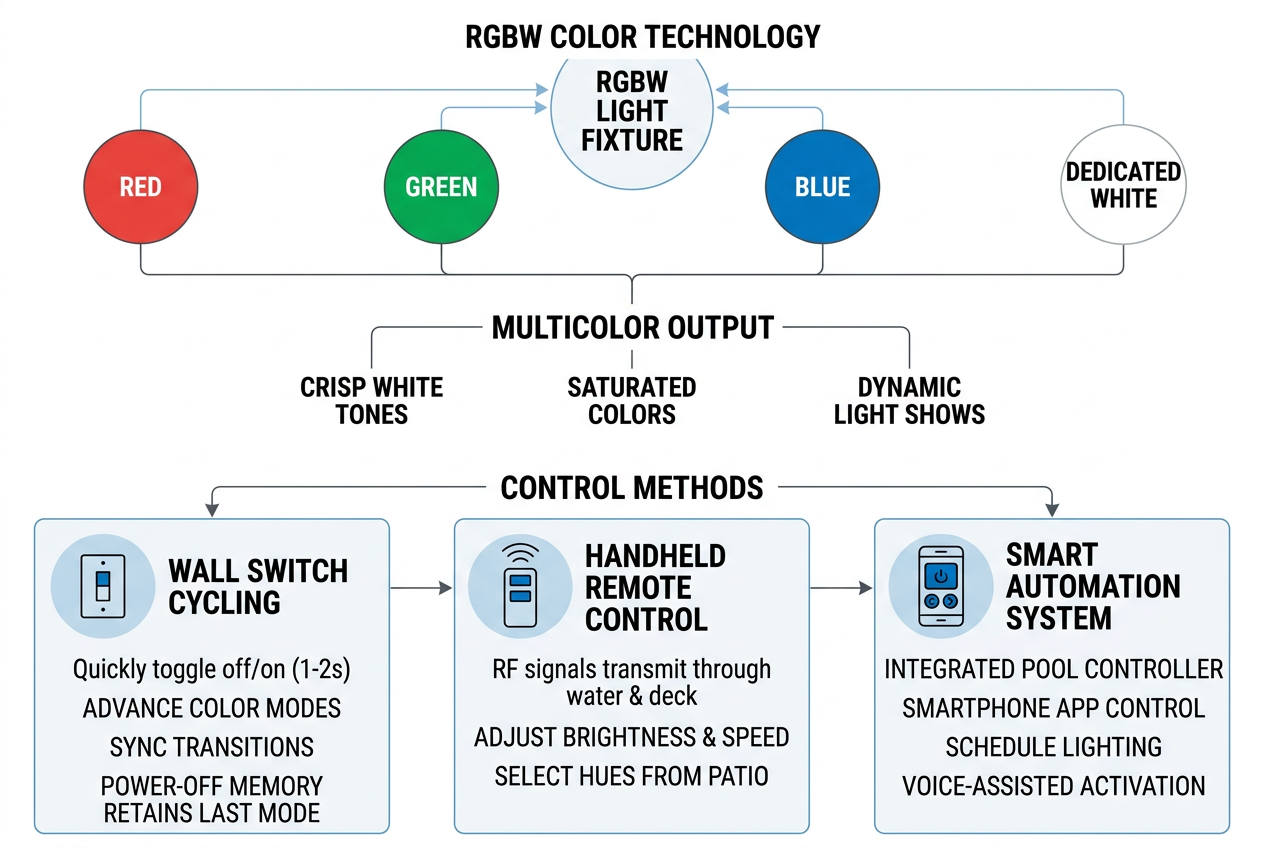

Multicolor RGBW Modes and Automation Controls
Illumination is as much about atmosphere as it is about visibility. Multicolor fixtures incorporating RGBW (Red, Green, Blue, and dedicated White) technology produce crisp architectural white tones alongside saturated party colors.
Controlling these modes can be adapted to any pool control setup:
- Wall Switch Cycling: Quickly toggling a standard light switch off and on (within 1 to 2 seconds) advances the fixture through built-in color shows, synchronized transitions, and steady hues. Built-in power-off memory retains the last active mode when turned back on.
- Handheld Remote Controls: Dedicated RF remotes transmit through pool water and deck surroundings, letting swimmers adjust brightness, speed, and hue directly from a patio lounger.
- Smart Automation Systems: Integrated pool controllers enable scheduling, smartphone app control, and voice-assisted activation.
For an in-depth breakdown of color mixing, program sequences, and control systems, explore this comprehensive colored pool light guide.
Installation and Safe Operation of Underwater Fixtures
Underwater pool lights are engineered with wet-niche technology, meaning water freely circulates inside the wall niche behind the sealed light assembly to help cool the fixture. Installing or replacing an underwater unit involves routing a continuous, factory-sealed cord from the wet niche through an underwater conduit directly to a deck-mounted junction box.
Never cut or splice an underwater cord beneath the deck. Always purchase fixtures with cord lengths ranging from 50 to 100 feet or more to ensure uninterrupted wiring directly to the approved junction box. For complete peace of mind, scheduling professional pool lights installation guarantees that all grounding, bonding, and sealing steps strictly adhere to local safety regulations.

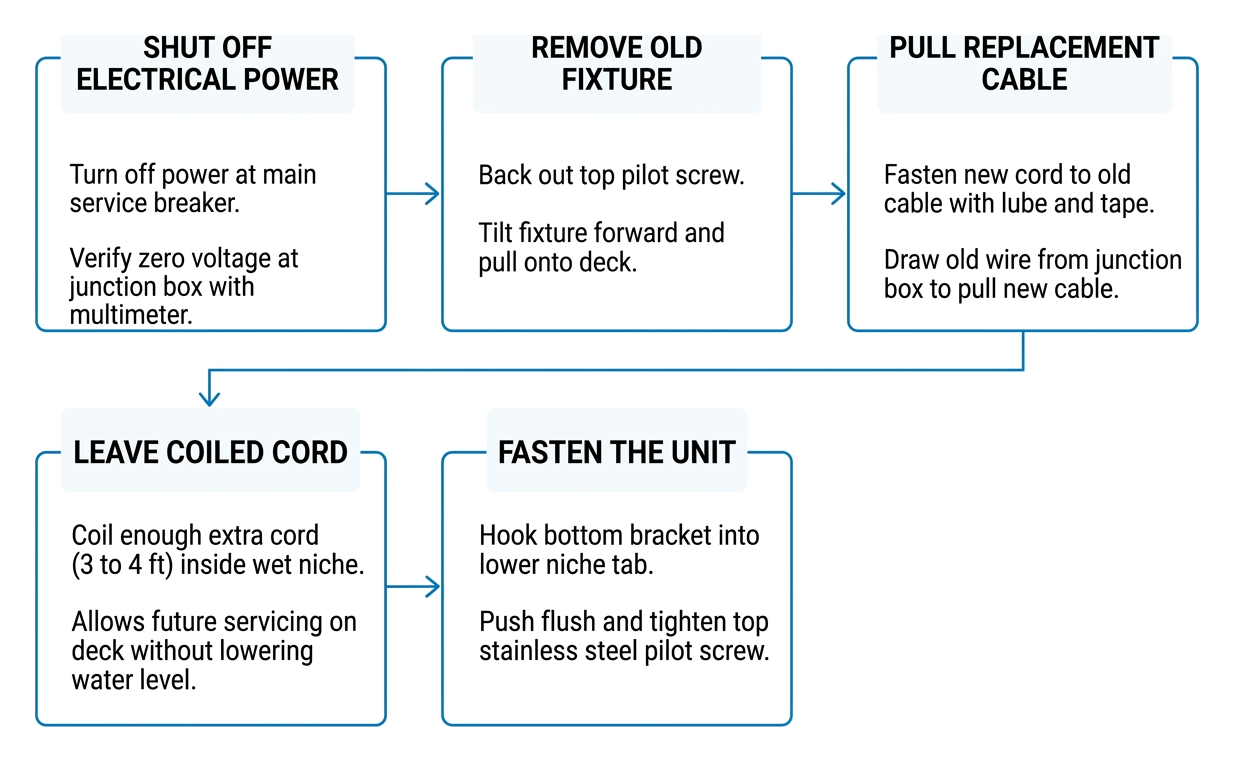

How to Install an 8 Inch Pool Light in Wet Niches
Installing an underwater fixture requires strict adherence to safety protocols:
- Shut Off Electrical Power: Turn off all electricity feeding the pool light, transformer, and automation subpanel at the main service breaker panel. Verify zero voltage at the junction box using a reliable multimeter.
- Remove the Old Fixture: Back out the top pilot screw securing the face rim to the niche bracket. Tilt the fixture forward, unhook the bottom tab, and pull the light onto the pool deck.
- Pull the Replacement Cable: Fasten the new waterproof cord securely to the old cable at the niche end using pulling lube and heavy-duty tape. Carefully draw the old wire out from the deck junction box to pull the new cable through the conduit.
- Leave Coiled Cord for Servicing: Coil enough extra cord (typically 3 to 4 feet) neatly inside the back of the wet niche. This crucial slack allows future technicians to lift the light onto the pool deck for maintenance without lowering the water level.
- Fasten the Unit: Hook the bottom mounting bracket of the face ring into the lower niche tab, push the housing flush against the wall, and tighten the stainless steel pilot screw securely into the top niche receiver.
Required Installation Equipment:
- Insulated flathead and Phillips screwdrivers
- Digital multimeter or non-contact voltage tester
- Wire fish tape and pulling lubricant
- Wire strippers, crimpers, and waterproof wire connectors
- Personal safety gear (protective gloves, eyewear)
Safety Standards, Waterproofing, and Essential Maintenance
Underwater electrical installations must comply fully with National Electrical Code (NEC) guidelines. All pool lighting circuits must be protected by a dedicated Ground Fault Circuit Interrupter (GFCI) breaker to protect against electrical faults. Additionally, deck-level junction boxes must sit at least 4 inches above the maximum water level (or 8 inches above the ground level) and at least 48 inches away from the pool’s edge.
Under standard safety guidelines, fixtures should be mounted so that the top of the lens sits at least 18 inches below the normal water level. Water acts as a natural heat sink; running high-output LED fixtures dry out of the water for more than 10 to 15 seconds can overheat internal components and degrade the waterproof seals.
Homeowners in Northeastern Pennsylvania—including Wilkes-Barre, Scranton, Dickson City, Doylestown, and Bartonsville—can rely on the certified team at Aqua Leisure Pools and Spas for pool equipment, maintenance, and expert lighting installations. When considering an equipment upgrade or exploring premium in-ground pools and lighting services, working with trained local specialists ensures your backyard oasis remains safe, energy-efficient, and beautifully illuminated for every night swim.
