Ultimate Checklist for Buying a Compatible 12V Pool Light
Choose a Safe, Compatible 12 Volt Swimming Pool Light

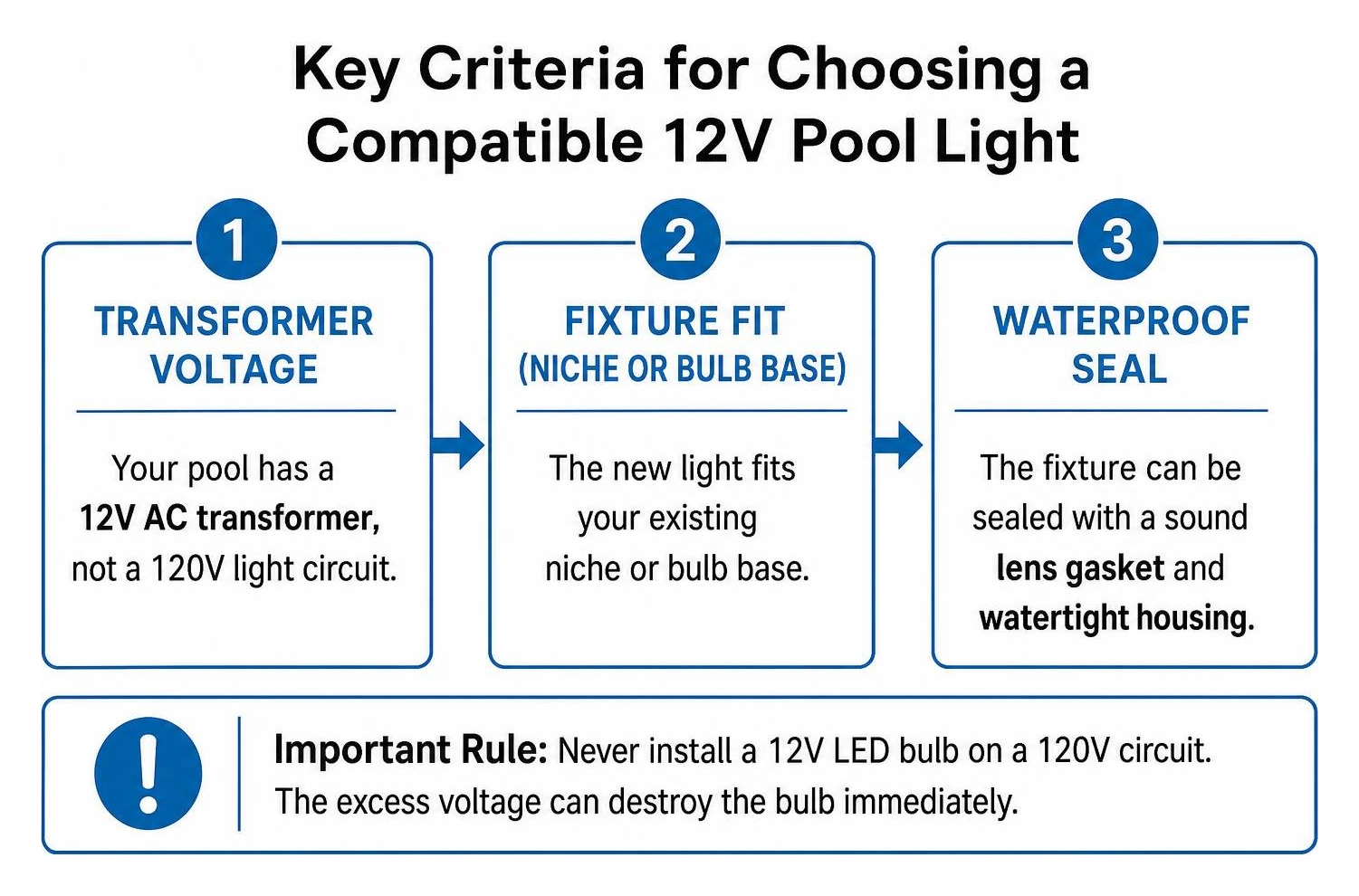

A 12 volt swimming pool light is a smart choice when you want safer, efficient underwater lighting – but only if it matches your existing fixture, niche, and power supply. Before buying, confirm these three things:
- Your pool has a 12V AC transformer, not a 120V light circuit.
- The new light fits your existing niche or bulb base.
- The fixture can be sealed with a sound lens gasket and watertight housing.
Low-voltage 12V lighting operates far below standard 120V household power, which helps reduce electrical risk around water. It also gives homeowners an easy path to upgrade older halogen or incandescent lighting to long-lasting LED illumination, including color-changing options.
The most important rule is simple: never install a 12V LED bulb on a 120V circuit. The excess voltage can destroy the bulb immediately. A compatible transformer, correct fixture fit, and proper waterproof sealing matter as much as the light’s brightness or color features.
This checklist will help you compare your options with confidence, so your pool can deliver the relaxed, inviting nighttime space you want without costly compatibility mistakes.
Quick 12 volt swimming pool light definitions:
Key Compatibility Checklist for a 12 Volt Swimming Pool Light
Upgrading your pool’s underwater illumination requires careful planning. While modern LED options offer remarkable energy savings and vivid color shows, low-voltage systems depend on strict electrical parameters and physical fitment. Making sure every component matches your pool’s electrical infrastructure protects your investment and ensures a safe swimming environment.
Choosing the Right 12 Volt Swimming Pool Light Voltage and Transformer
The primary distinction in pool illumination is between line-voltage (120V) and low-voltage (12V) systems. Standard household current in North America runs at 120V, but underwater environments benefit significantly from lower voltages. Electrical safety standards recognize 50V AC as the threshold for human safety under prolonged exposure. Operating at 12V provides peace of mind while delivering up to 80% operational cost savings when transitioning from traditional halogen or incandescent bulbs to modern LED fixtures.
Modern LED units boast lifespans reaching 50,000 hours, meaning fewer bulb replacements over the life of your pool. However, a 12V system requires a dedicated external step-down transformer to convert 120V grid power safely. When sizing a transformer, follow the 130% rule: the transformer’s rated wattage capacity should be at least 130% of the total combined wattage of all connected lights. This headroom prevents electrical overloading and nuisance tripping.
Because electrical current is roughly ten times higher in a 12V circuit than in a 120V circuit for the same wattage, low-voltage lines are subject to higher transmission loss and voltage drop over extended wire runs. For instance, a drop from 12.0V down to 11.2V can cause noticeable dimming at the fixture. High-quality fixtures, such as those featuring Universal CrystaLogic 2.0 LED Pool Light specifications, are engineered to operate reliably across a 12–15V range to compensate for typical line losses. Always ensure the circuit includes dedicated GFCI protection to meet local building codes and safety regulations. You can explore everything you need to know about swimming pool lights to understand your pool’s overall electrical design.
| Feature | 12V Low-Voltage Pool Lights | 120V Line-Voltage Pool Lights |
|---|---|---|
| Operating Voltage | 12V AC (requires step-down transformer) | 120V AC (direct household line) |
| Electrical Safety | Operates well below the 50V safe threshold | Requires strict GFCI and grounding/bonding |
| Voltage Drop Sensitivity | Higher current makes long wire runs prone to voltage drop | Minimal transmission loss over long distances |
| Energy Consumption | Highly efficient (12W–50W LED equivalents) | Often high wattage (200W–500W halogen/incandescent) |
| Expected Lifespan | Up to 50,000 operational hours (LED) | 1,000–5,000 hours (traditional bulbs) |
Fixture Niche Sizing and Base Type Compatibility
Physical compatibility is just as vital as electrical matching. Swimming pool lights generally fall into two categories: screw-in retrofit bulbs and integrated, sealed underwater fixtures.
- Edison Screw Bases (E26): Many replacement LED bulbs use a standard E26 screw base designed to twist directly into existing niche housings, such as the Hayward® Astrolite® SP058 Series or Pentair® Amerlite® 784 Series.
- Nicheless Wall Return Fittings: Modern pool designs often utilize 1.5-inch nicheless fittings. These compact lights screw or push straight into standard threaded wall return lines, bypassing the need for large traditional wet niches.
- Shell Compatibility: Whether your pool has a gunite, vinyl liner, or fiberglass shell, always verify that the housing flange, face ring, and mounting bracket match your specific wall structure.
When shopping for replacement units, reviewing detailed IP68 underwater stainless steel LED fixture parameters ensures that physical dimensions, housing materials, and lens designs align with your existing wet niche. For additional niche sizing insights, review this helpful cheat sheet to best pool lights for inground pools.
Selecting Features for a 12 Volt Swimming Pool Light System
Today’s 12V LED pool lights offer an impressive array of aesthetic and functional options:
- Color Variety: Standard color-changing LED bulbs deliver 7 solid colors (ranging from deep blues and emerald greens to crisp whites) along with 9 dynamic light shows.
- Control Methods: Advanced pool lights integrate seamlessly into digital automation systems. For pools without automated controllers, you can change modes by toggling the standard wall switch off and on within a 1- to 2-second pulse window.
- Optics and Brightness: Consider lumen output and beam angles (ranging from narrow 8° spots for targeted water features to wide 60°–120° floods) to ensure even pool floor illumination without annoying surface glare.
- Material Durability: For standard chlorinated or freshwater pools, 304 stainless steel offers solid durability. For saltwater systems, select marine-grade 316L stainless steel or corrosion-proof encapsulated polymers to resist chemical corrosion.
Before making a final choice, take a look at a comprehensive guide to colored pool lights compare your options and gather creative inspiration from these inground pool lighting ideas.
Step-by-Step Installation, Safety, and Troubleshooting Guide
Installing or retrofitting underwater lighting requires careful attention to detail, especially regarding water seals and electrical connections. A methodical approach prevents leaks and keeps your pool safe.

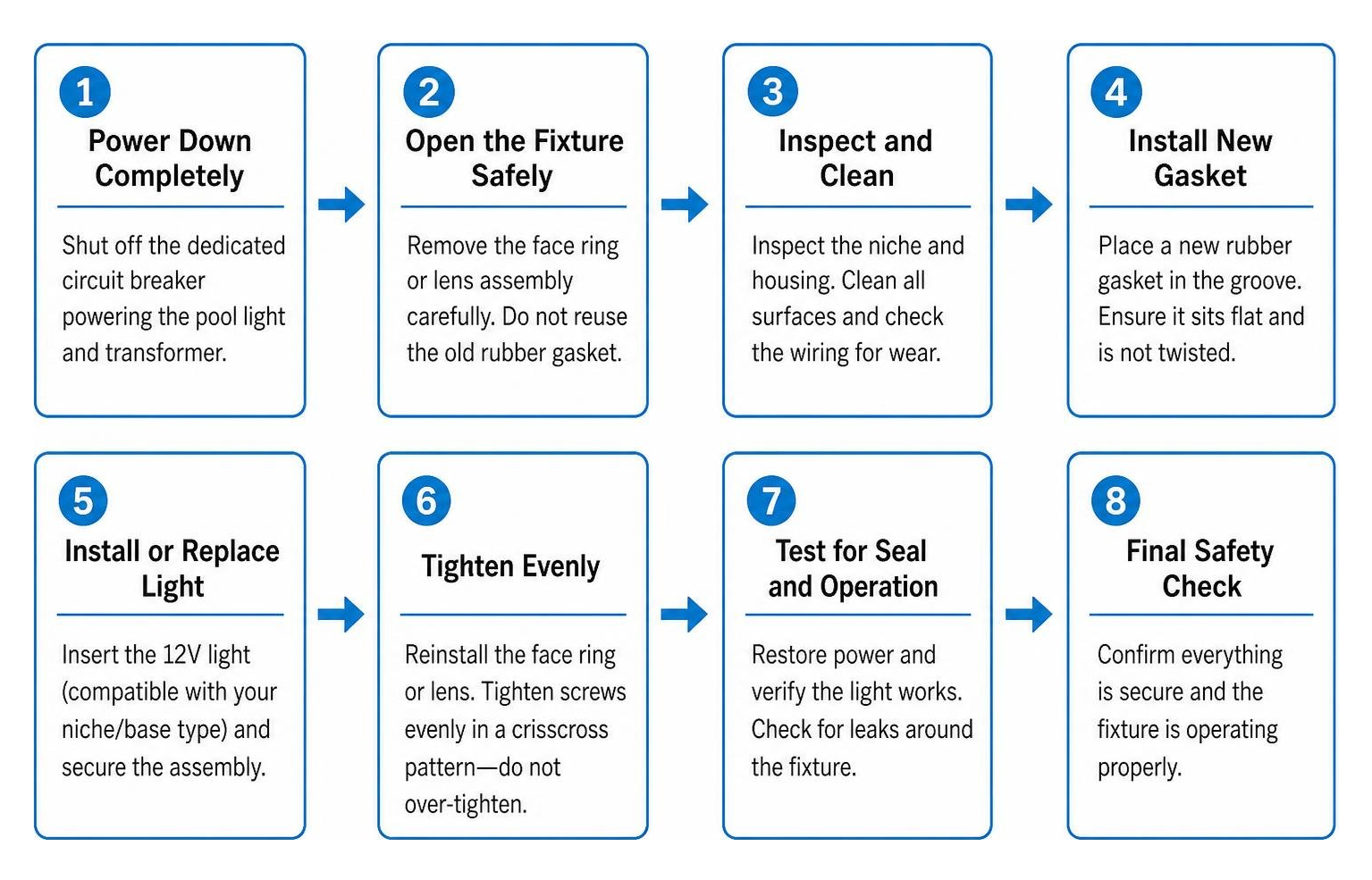

Proper Waterproof Sealing and Wiring Best Practices
Whenever you open a pool light housing to replace a bulb, never reuse the old rubber gasket. Heat, pool chemicals, and compression cause rubber to degrade over time, creating a prime risk for leaks.
- Power Down Completely: Shut off the dedicated circuit breaker powering the pool light and transformer before touching any hardware.
- Remove the Fixture to the Pool Deck: Unscrew the single pilot screw at the top of the face ring, unhook the bottom catch, and lift the fixture onto the deck. Most original installations include enough coiled cord inside the niche to reach dry ground.
- Inspect and Clean the Niche: Clear out any debris, algae, or mineral buildup inside the niche cavity.
- Replace the Gasket: Clean the lens rim thoroughly and seat a brand-new, factory-specified silicone gasket around the lens and housing perimeter.
- Reassemble with Even Torque: Tighten the clamp ring or face screws evenly in an alternating cross pattern to ensure uniform compression around the gasket.
- Check Ingress Protection: Ensure the fixture maintains an IP68 rating, which certifies continuous underwater submersion.
- Maintain a Continuous Cord: Use a continuous, unbroken cable run from the fixture to the junction box. Splicing cords inside conduit is a severe hazard and can allow moisture to enter.
- Junction Box Height: Ensure your pool junction box is mounted at least 4 inches above the ground or pool deck and at least 8 inches above the maximum water level.
For a deeper look into the physical setup, consult our guide on pool lights installation, or read the complete guide to above ground through wall pool lights if you manage an above-ground build.
Troubleshooting Common Power and Synchronization Issues
If your new low-voltage light does not illuminate or behave as expected after installation, work through this systematic troubleshooting process:
- Check the Transformer Fuse and GFCI: Check if the GFCI outlet or transformer breaker has tripped. A momentary surge during startup can occasionally trip sensitive breakers.
- Verify Incoming Voltage: Use a digital multimeter at the low-voltage output terminals of the transformer. It should read between 12V and 14V AC. If it reads zero, the transformer fuse may be blown or the primary 120V line lacks power.
- Inspect for Over-Voltage Damage: If a 12V bulb was accidentally wired to a 120V circuit, the internal control chips will burn out instantly. This type of electrical damage is irreversible and typically voided by standard 1-year product warranties.
- Resolve Synchronization Mismatches: When multiple color-changing lights run on the same switch, they can occasionally fall out of sync. To reset them, turn the wall switch off for 10 to 15 seconds, turn it on for 1 to 2 seconds, and then turn it off again. Powering the system back on will synchronize all connected fixtures to the default start mode.
- Test for Voltage Drop: If the light appears unusually dim, check the voltage at the fixture end. A long or undersized cable can cause significant voltage loss along the run.
If you encounter persistent electrical issues or need help finding the right parts for your in-ground pools, the team at Aqua Leisure Pools and Spas is ready to help. Homeowners across Northeastern Pennsylvania—including Wilkes-Barre, Dickson City, Bartonsville, Doylestown, Scranton, and Allentown—can find genuine replacement hardware and professional testing at their local showroom or pick up essential swimming pool supplies Wilkes-Barre PA. With the right voltage, a secure fit, and a tight waterproof seal, your low-voltage pool lighting will deliver brilliant, reliable illumination for seasons to come.
